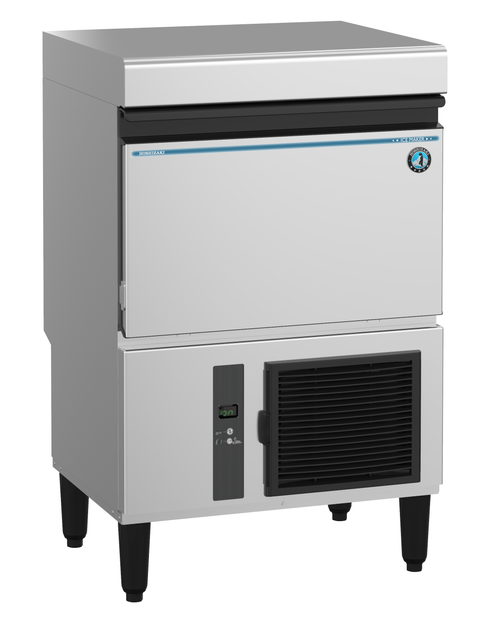

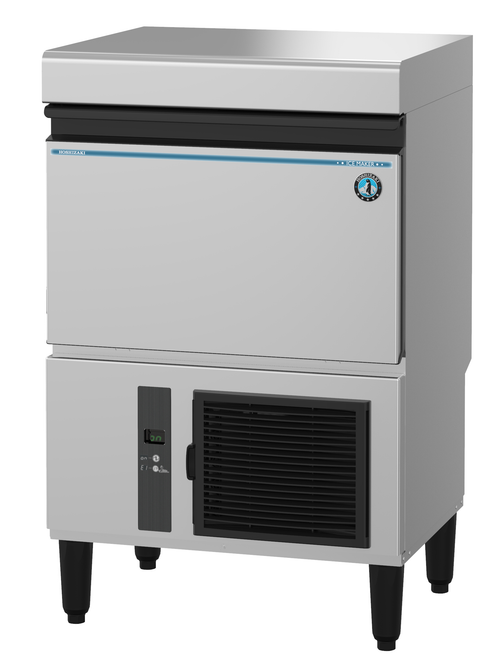

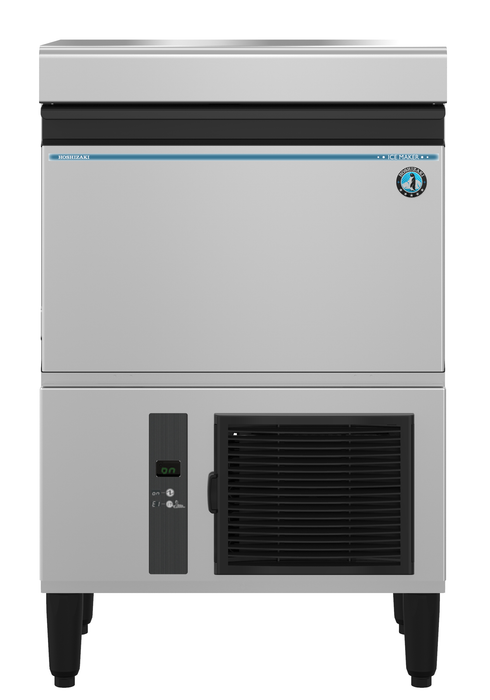

Made with a strong stainless steel exterior and sturdy legs, the Hoshizaki IM-50BAA-Q Cooled Sphere Ice Machine is built for commercial establishments. It produces up to 50 lb of ice and has a built-in storage capacity of 36 lb for convenience. Plus, it includes a scoop for sanitary serving.
This commercial ice maker is made with foam injected polyurethane insulation to prevent ice from melting while the air filter is easy to clean for simple maintenance. It's cooled with an R-134A refrigerant and features a front-in, front-out airflow design.
Storage Bin Capacity: 36 lb
Ice Production: 50 lb per 24 hr
Ice Shape: Sphere (1.8" diameter)
Unit Measurements: 39.5" high x 23.75" width x 20.75" depth
Cooling Type: Air
Heat Rejection: 1500 BTU/hr
Ambient Temperature Range: 45-100°F
Water Temperature Range: 45-90°F
Water Pressure: 10 psig to 113 psig
Electrical: 115V/60/1
Refrigerant Type: R-134A
Warranty: 3 Year Parts and Labour, 5 Year Compressor
