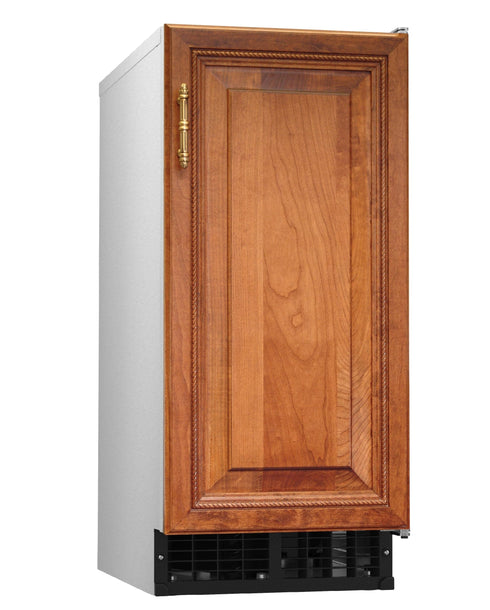

The ideal addition to any hotel suite, office breakroom or kitchen, the Hoshizaki AM-50BAJ-DS Air Cooled Undercounter Top Hat Cube Icemaker is versatile and attractive. It produces 51 lb of ice per 24 hrs and stores 22 lb in the built-in storage bin for convenience.
Operators can easily disassemble the water circuit for easy cleaning. The commercial ice maker has a power switch that's accessible without panel removal for convenience. The unit has an R134A refrigerant and front in and out airflow that eliminates the need for side and rear clearance.
Designed with a custom cabinet door, the commercial icemaker has a door that can be revered with a kit (sold separately).
Storage Bin Capacity: 22 lb
Ice Production: 51lb per 24 hr
Ice Shape: Top Hat (1" high x 7/8" diameter)
Unit Measurements: 31 1/2" high x 14 7/8" width x 22 5/8" depth
Cooling Type: Air
Heat Rejection: 1900 BTU/hr
Ambient Temperature Range: 45-100°F
Water Temperature Range: 45-95°F
Water Pressure: 7 psig to 113 psig
Electrical: 115V/60/1
Plug: NEMA 5-15
Cord: 6'
Refrigerant Type: R134A
Amps: 3.8
Warranty: 2 Year Parts and Labour
FILES
Spec Sheet
PLEASE NOTE AM-50BAJ-DS is the same as AM-50BAH-DS.
