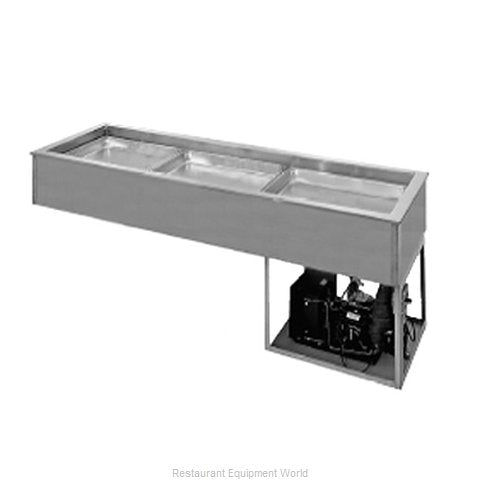

Condensing unit mounted on a swivel platform that allows for 90 degrees of rotation of intake/exhaust louver, giving customer the option of mounting our louver on any of the counters four sides.
UNIT EXTERIOR: Top and coved corner interior to be constructed of 18 gauge stainless steel. Exterior body to be corrosion resistant steel. Condensing unit mounted on corrosion resistant framework, suspended below unit body. (1) stainless steel louver panel provided for field installation in counter.
UNIT INTERIOR: Interior fitted with 1" drain at one end. Drain nipple supplied with gate valve. Insulated with CFC free, foamed in place polyurethane. Recessed, stainless steel ledge provided for supporting pans, adaptor bars included on SCA units.
REFRIGERATION: CFC free, R-404a refrigeration system to be wrapped refrigeration construction with thermostatic control for operator adjustability. Entire system mounted on corrosion resistant framework, suspended below unit body. 8' cordset (NEMA 5-15P)
supplied for 115V operation.
• Swivel base condensing unit allows for unlimited location of the single air intake/exhaust louver
• New Randell exclusive easy mount system
• Self-contained, wrapped refrigeration system with thermostatic control, system utilizes “CFC free”, R-404a refrigerant
• Meets 1998 NSF Std. #7 - holds 41°F product temperatures
• All stainless steel top and coved corner interior
• Drain and gate valve provided
• Foamed in place, “CFC free” urethane insulation
• One dual air movement louver provided
• 9' corset for 120V plug-in operation
Pan Capacity: 2 (12" x 20")
Overall Measurements: 46" x 18 5/16"
Cut Out Measurements: 44 1/2" x 17" 1/4
Volts: 115/60/1
Amps: 5
Plug Type: 5-15P
Weight: 140 lb
